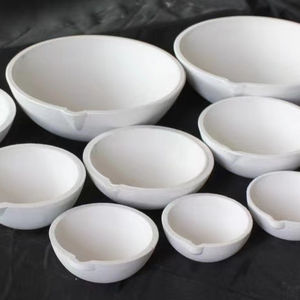

Jewelry Industry Fused Silica Quartz Ceramic Melting Bowl Crucible

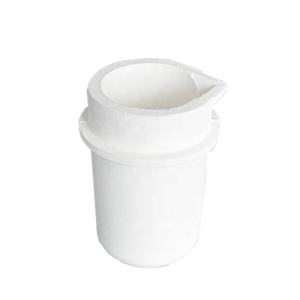

Quartz Ceramic Melting Fused Silica Crucible for Jewelry Industry

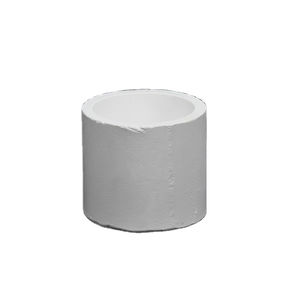

Quartz Silica SiO2 Ceramic Crucible Cylindrical Genre Crucible

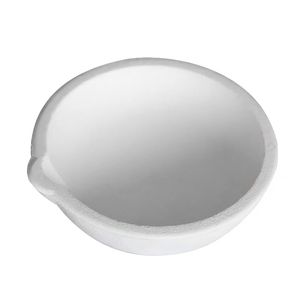

Fused Silica Quartz Crucible Casting Dish
Portable Granite Marble Quartz Stone Ceramic Porcelain Tile Cutting Machine Stone Cutting Machine
Quartz Stone Grinding Mill Powder Making Machine, Ultrafine Grinding Quartz Ceramic Ball Mill Machine
Whole Quartz Stone Sample Plastic Box Custom Portable Artificial Stone Paper Box Carton Product Brochure
Factory Direct Best Quality Construction Fine Silica Sand Premium River and Sea Sand at Whole s Quartz Products
high quality quartz crucible for silicon quartz tube for lab sue
Ceramic Crucibles Bowl Melting / Gold / Silver /Copper/Platinum Palladium Jewelry Tools Silica Quartz Dish Ceramic Crucible
Overview of Quartz Ceramic
Quartz Ceramic, also known as fused quartz or silica ceramic, is a high-performance material engineered for extreme environments. Unlike traditional ceramics, it is composed of vitreous (non-crystalline) silica, resulting in a unique combination of thermal, electrical, and chemical properties. This material is specifically designed to offer exceptional thermal shock resistance, maintaining structural integrity where other materials would fail. It is the premier choice for applications demanding purity, stability, and resilience under thermal stress.
Features of Quartz Ceramic
- Unmatched Thermal Shock Resistance: With an extremely low coefficient of thermal expansion, quartz ceramic can withstand rapid temperature changes from over 1000°C to room temperature without cracking.
- High-Temperature Stability: It maintains excellent mechanical strength and dimensional stability at temperatures up to 1100°C.
- Superior Electrical Insulation: Offers high dielectric strength and low electrical conductivity, making it an ideal insulator in high-temperature and high-frequency applications.
- Exceptional Chemical Purity & Resistance: Highly inert and resistant to most acids, salts, and corrosive atmospheres, ensuring process purity and long service life.
- Low Thermal Conductivity: Acts as an effective thermal insulator, protecting sensitive components from heat.
- High Visible & IR Transmittance: Certain grades are engineered for optical applications, transmitting visible and infrared light.
Applications of Quartz Ceramic
Quartz Ceramic is indispensable across a wide range of high-tech industries:
- Semiconductor & Solar: Wafer boats, diffusion furnace tubes, crucibles for silicon crystal growth, and PV cell processing.
- Metallurgy & Foundry: Rad tubes for temperature sensors, risers, and investment casting cores.
- Lighting: Envelopes and components for high-intensity discharge (HID) lamps.
- Aerospace & Defense: Radomes, missile nose cones, and thermal insulation substrates.
- Laboratory & Chemical Processing: Crucibles, trays, and linings for high-purity chemical reactions.
Specification Table of Quartz Ceramic
| Property | Typical Value | Unit | Test Standard |
|---|---|---|---|
| Chemical Composition | >99.5% SiO₂ | % | - |
| Density | 2.0 - 2.1 | g/cm³ | ASTM C20 |
| Max. Use Temperature | 1100 (Short-term 1300) | °C | - |
| Coefficient of Thermal Expansion | 0.55 x 10⁻⁶ | /°C (20-1000°C) | ASTM E228 |
| Thermal Conductivity | 1.6 | W/m·K @ 20°C | - |
| Flexural Strength | 40 - 65 | MPa | ASTM C1161 |
| Dielectric Strength | >15 | kV/mm | ASTM D149 |
| Dielectric Constant | 3.2 - 3.5 | - @ 1 MHz | ASTM D150 |
Company Profile
Tanki New Materials Co.Ltd. focus on the research and development, production and sales of ceramic products, serving the electronics, ceramics, chemical and other industries. Since its establishment in 2015, the company has been committed to providing customers with the best products and services, and has become a leader in the industry through continuous technological innovation and strict quality management.
Our products includes but not limited to Aerogel, Aluminum Nitride, Aluminum Oxide, Boron Carbide, Boron Nitride, Ceramic Crucible, Ceramic Fiber, Quartz Product, Refractory Material, Silicon Carbide, Silicon Nitride, ect. please feel free to contact us.
Payment Methods
T/T, Western Union, Paypal, Credit Card etc.
Shipment Methods
By air, by sea, by express, as customers request.
5 FAQs of Quartz Ceramic
1. How does Quartz Ceramic differ from traditional Alumina Ceramic?
While both are technical ceramics, Quartz Ceramic is non-crystalline (amorphous) and has a much lower thermal expansion coefficient, giving it far superior thermal shock resistance. Alumina is polycrystalline, generally harder, and has higher mechanical strength at room temperature.
2. Can Quartz Ceramic be machined to custom shapes?
Yes. It can be precision machined in its fired state using diamond tools to create complex geometries, tight tolerances, and custom components for specific applications.
3. What is the maximum continuous operating temperature?
The recommended maximum continuous use temperature in an oxidizing atmosphere is 1100°C. For short-term exposure, it can withstand up to 1300°C.
4. Is Quartz Ceramic resistant to hydrofluoric acid (HF) and strong alkalis?
No. Like all silica-based materials, it is severely attacked by hydrofluoric acid and strong caustic solutions (e.g., sodium hydroxide). It is highly resistant to most other acids.
5. Why is it used in semiconductor manufacturing?
Its exceptional purity prevents wafer contamination, its thermal stability ensures process consistency, and its resistance to thermal shock is critical for rapid heating and cooling cycles in diffusion furnaces.
